The Most Powerful E-MTB

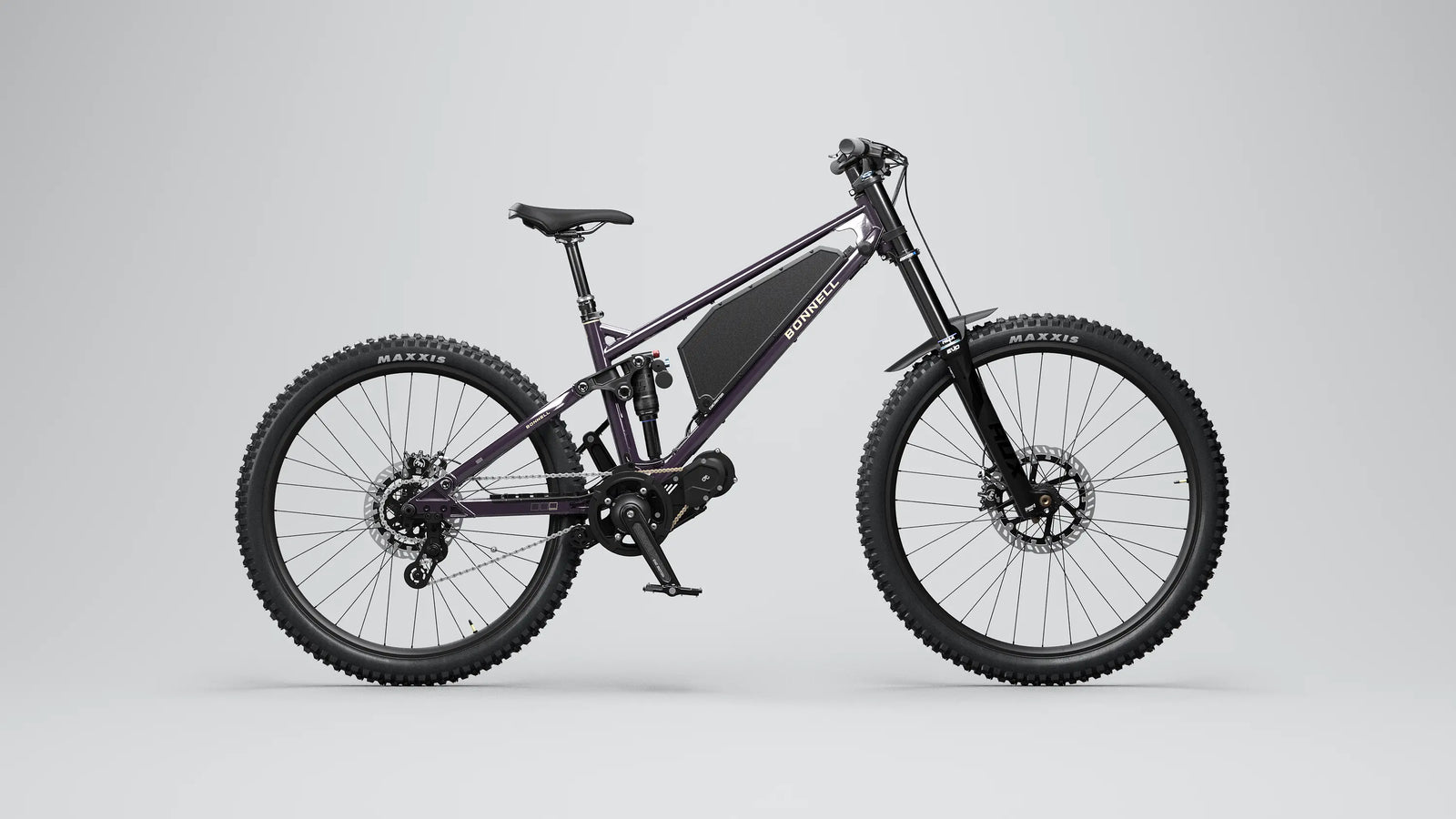

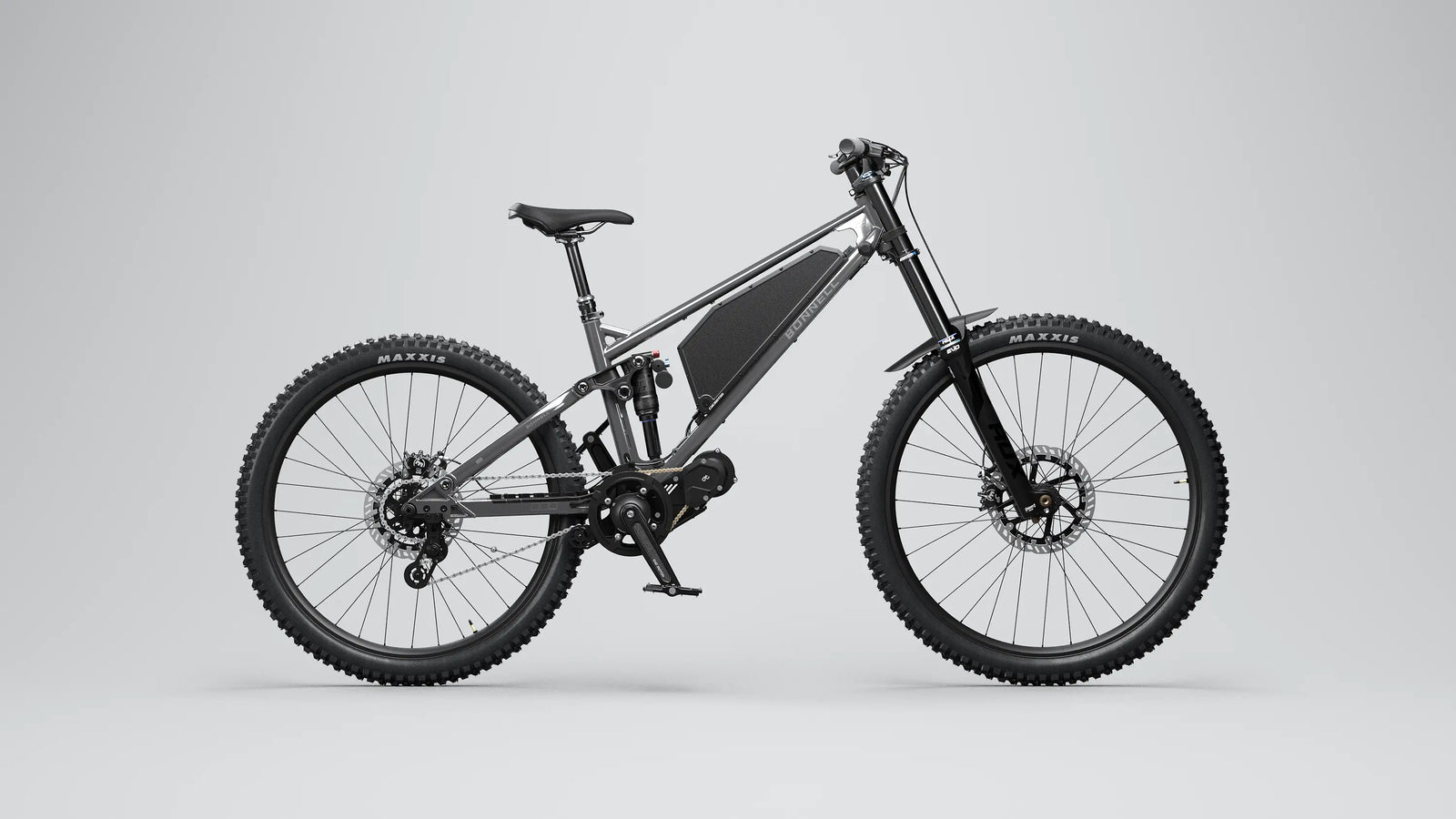

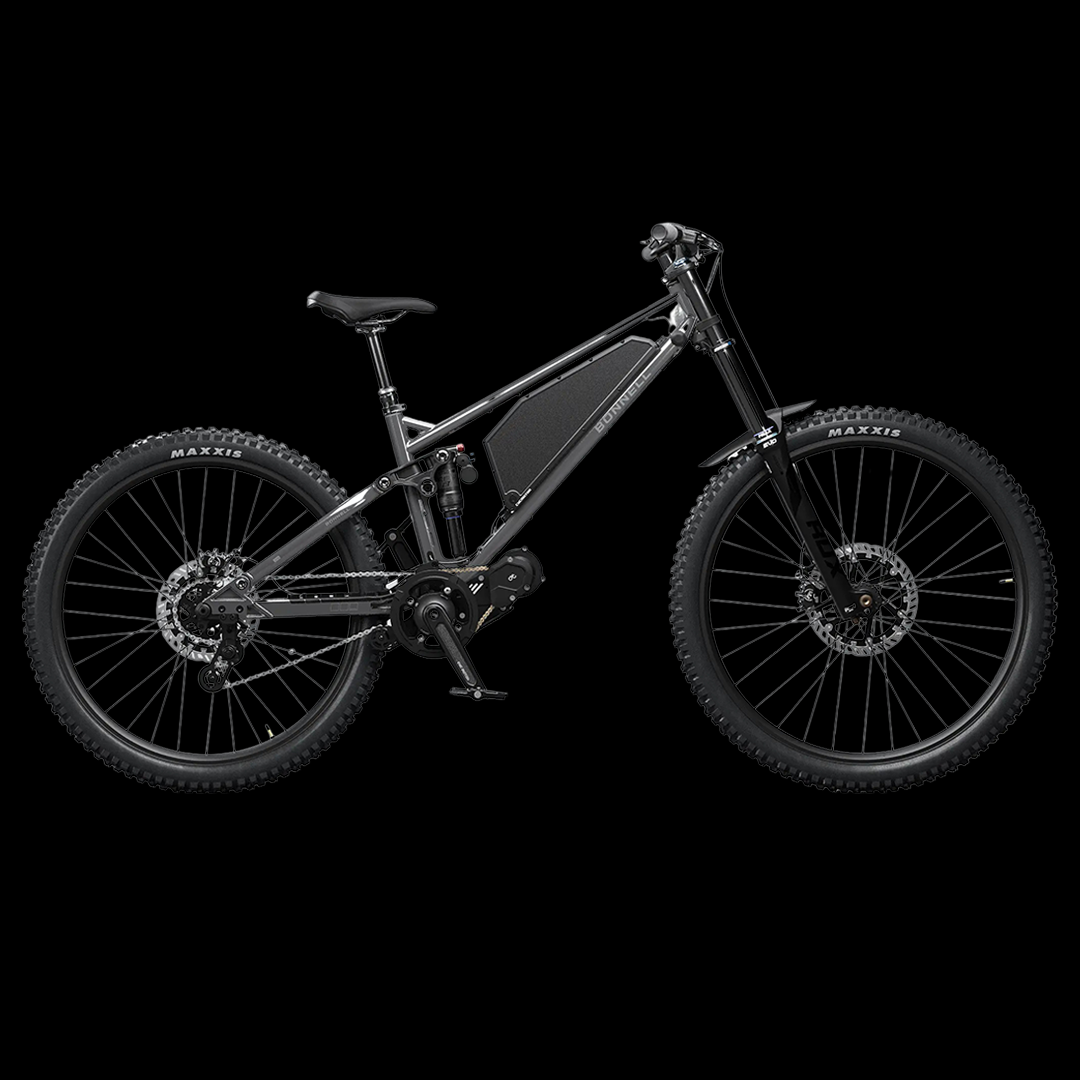

Bonnell 775 MX

Bonnell 775 MX

RONSTER RIDES

Bonnell 775 MX

Lead Time Ships in 3-4 Weeks

$5,495.00
Body color: Texas Grey
Size: M

Top Speed 37mph

Looks like a pedal bike, rips like a dirt bike.

Surron-level power on a full-suspension mountain bike.

Specifications

  • Top Speed 37mph
  • Power 6,000w
  • Range Up to 37 miles
  • Weight 75 lbs
  • Battery 65v20ah Samsung 50s

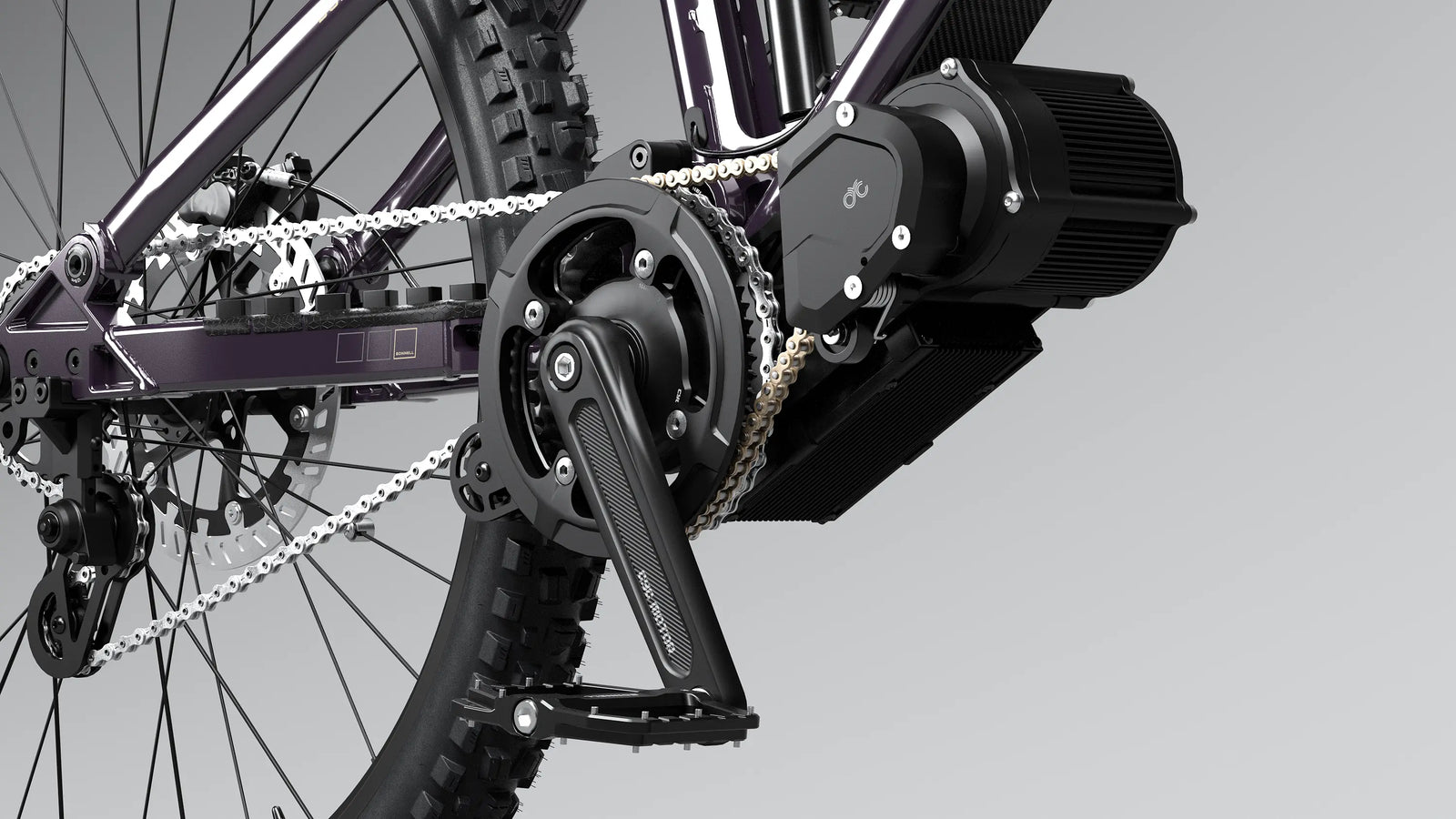

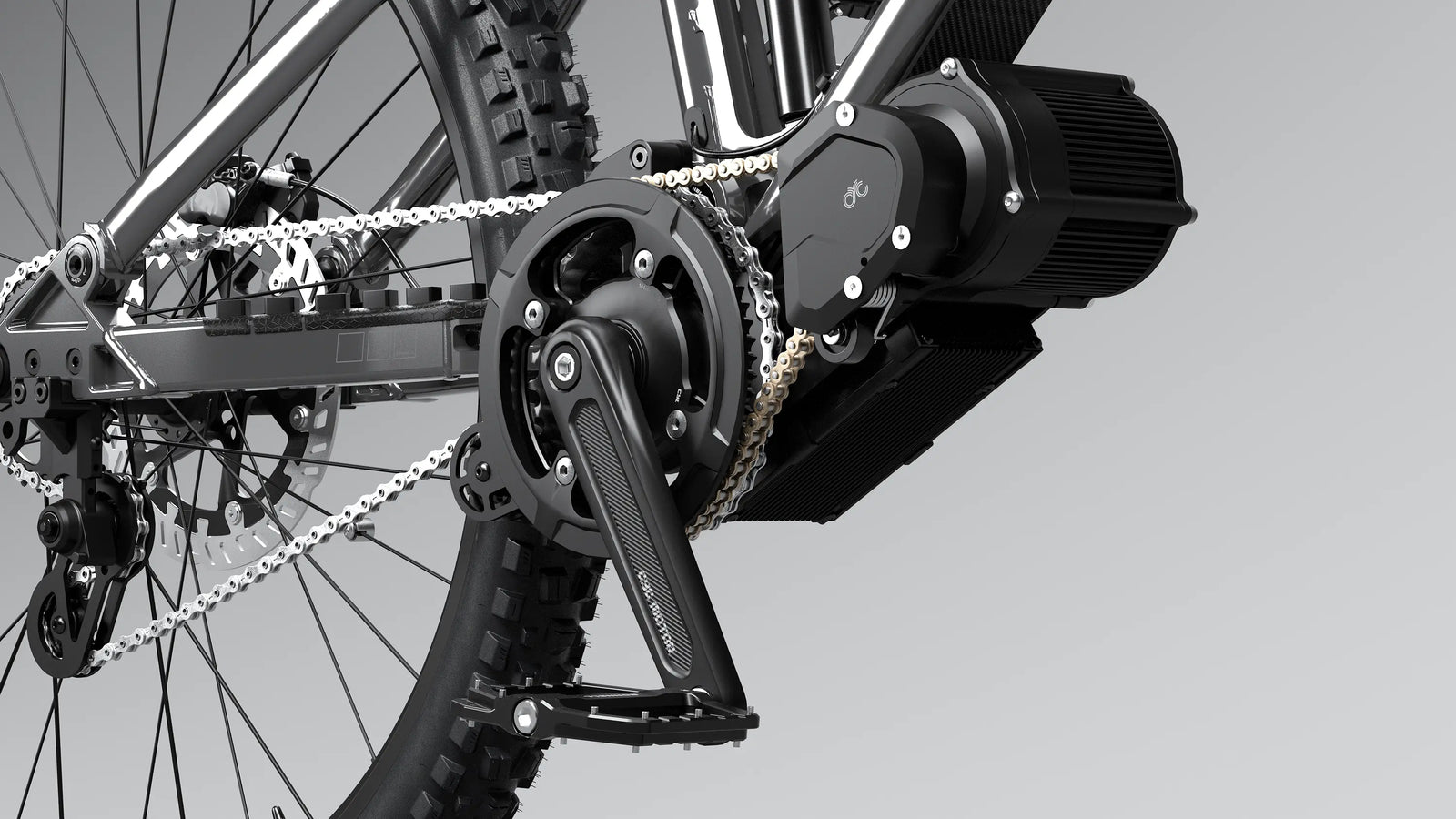

  • Motor  CYC X1 Pro Gen 4 Motor

What's in the box?

Minimal assembly required.

  • Battery & Charger: Power up your ride with the included high-capacity battery and charger.
  • Multi-Tool Kit: Compact but powerful, this kit has everything you need for quick adjustments on the go.
  • Shock Pump: Easily set and fine-tune your suspension for smooth, epic rides every time.

All Components

Frame

  • 4130 chromoly front triangle
  • 6061 Aluminium seatstays with removable bridge and forged bearing eyelets
  • Forged rocker arm
  • Durable powder coating

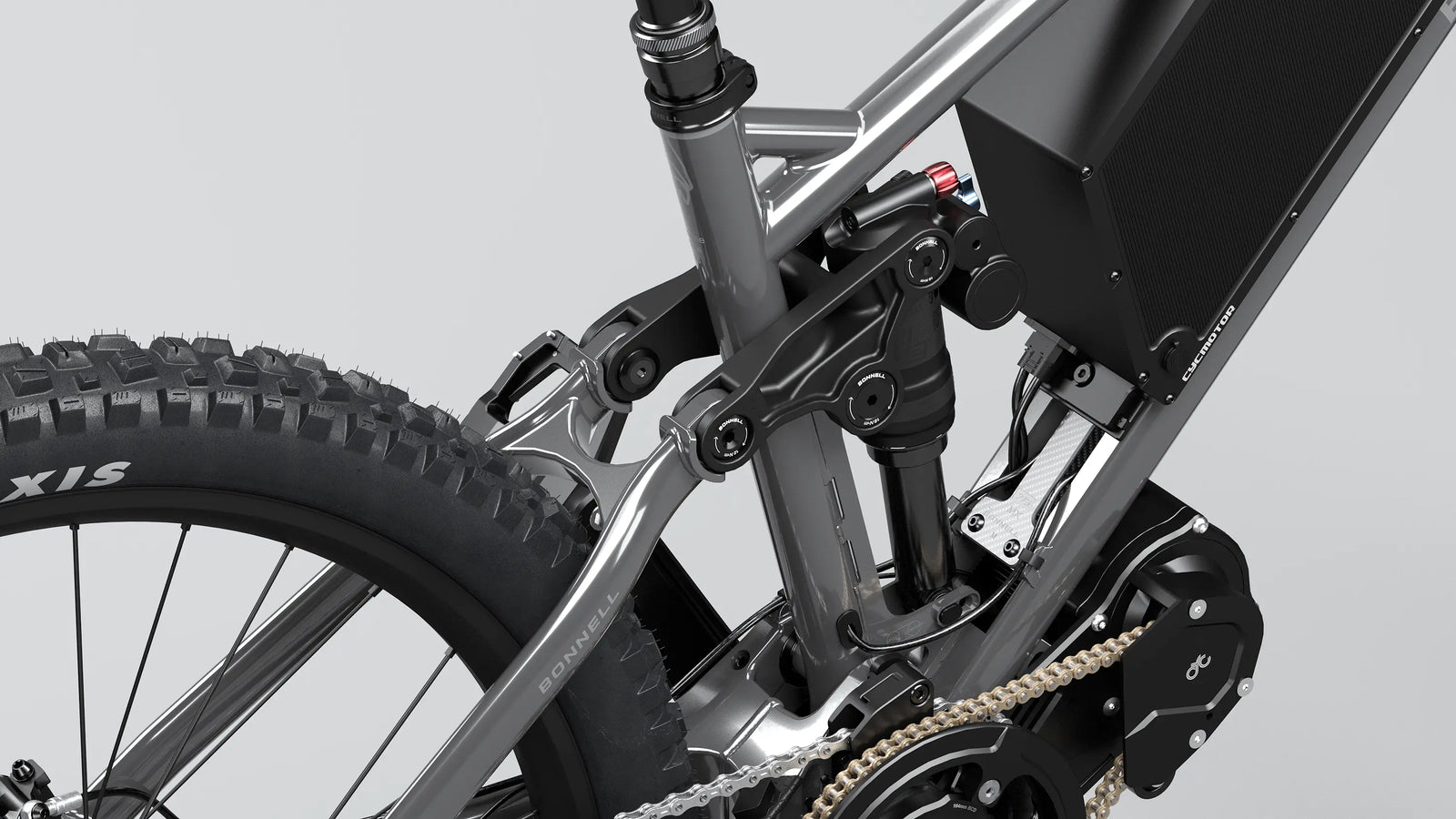

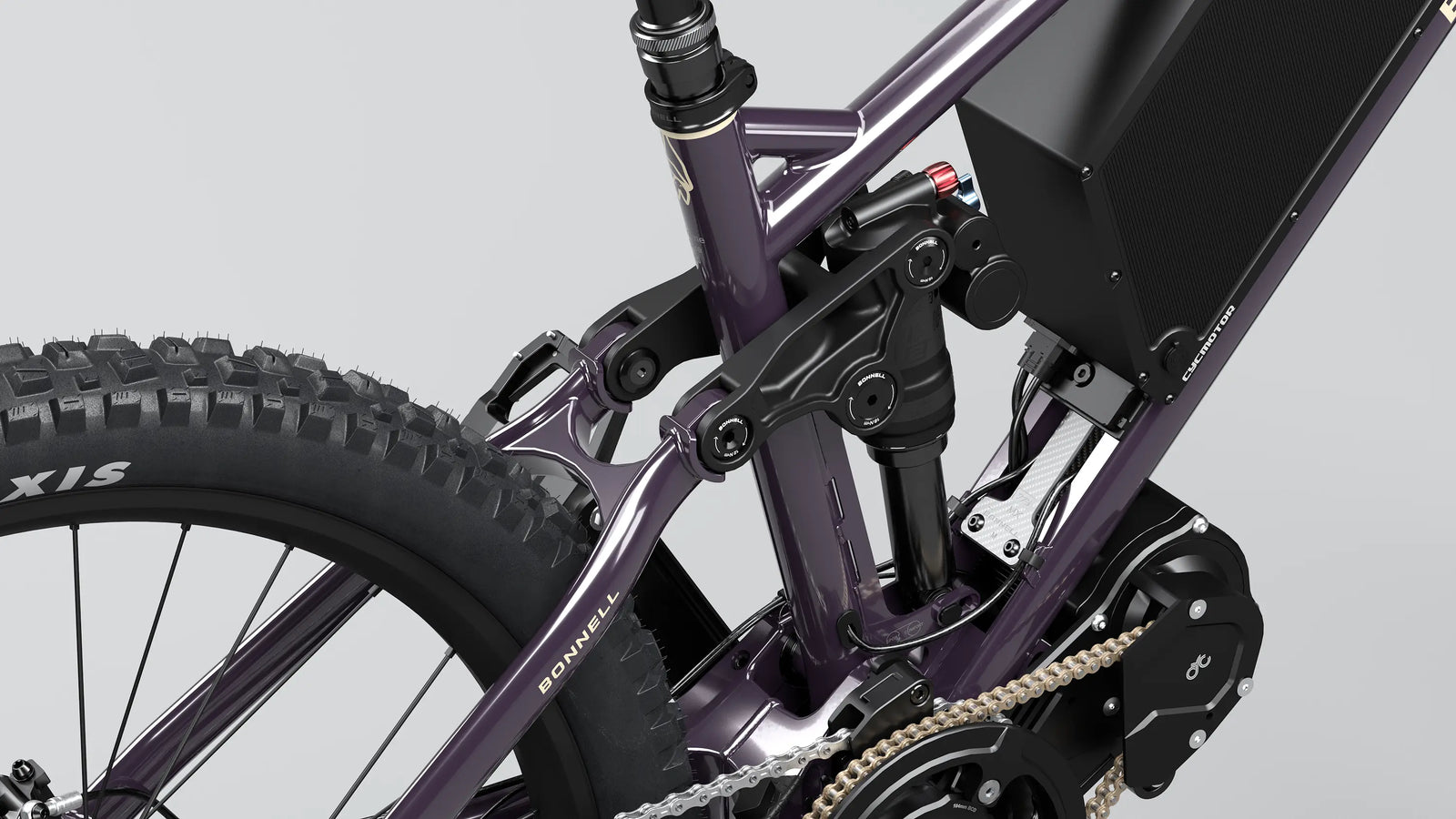

Rear Suspension

  • Suntour Voro Shock, BONNELL MX custom tune
  • 3 positions compression lever and rebound adjuster
  • Trunnion 205*65mm. 25*8mm lower shock mount

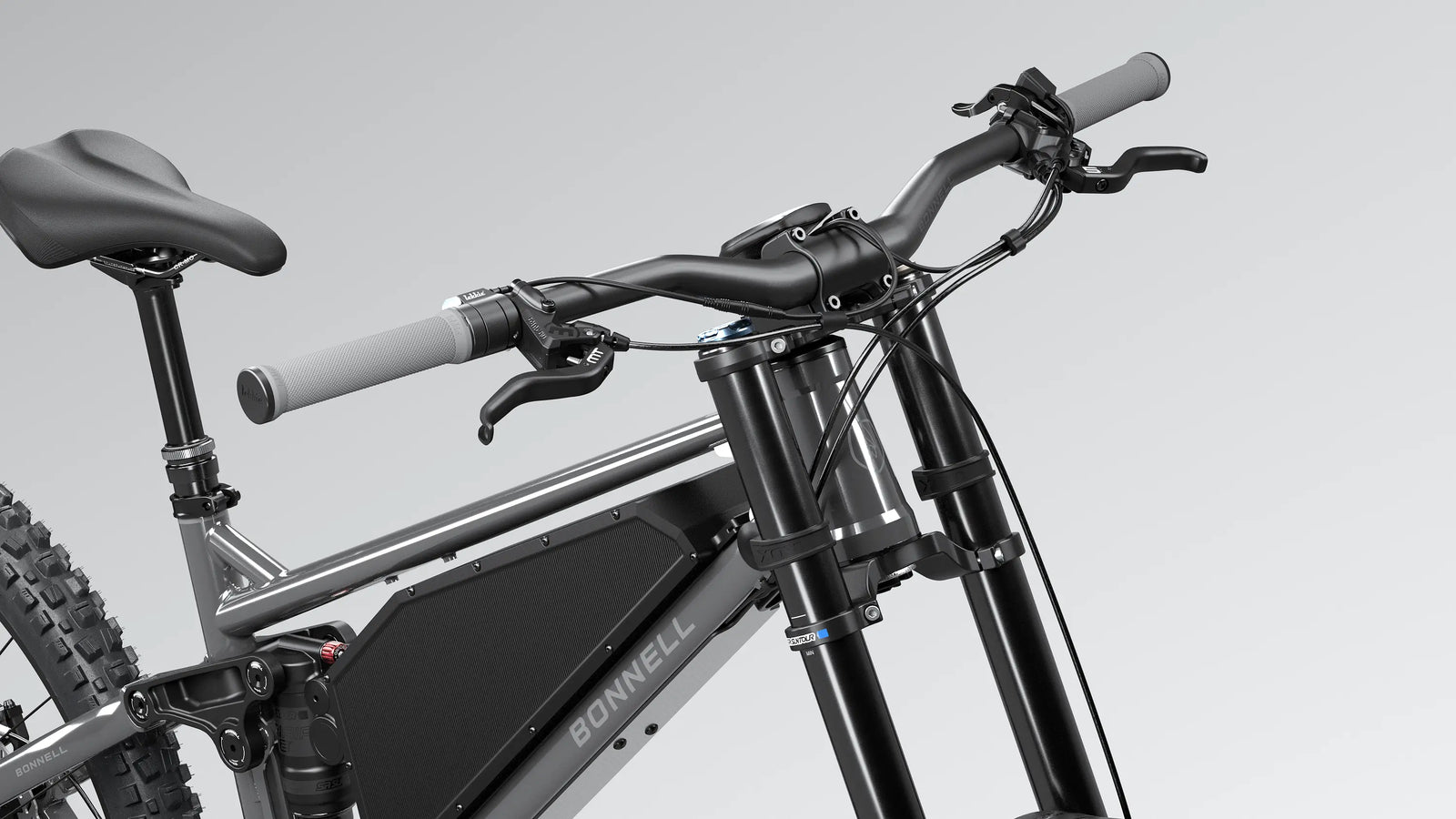

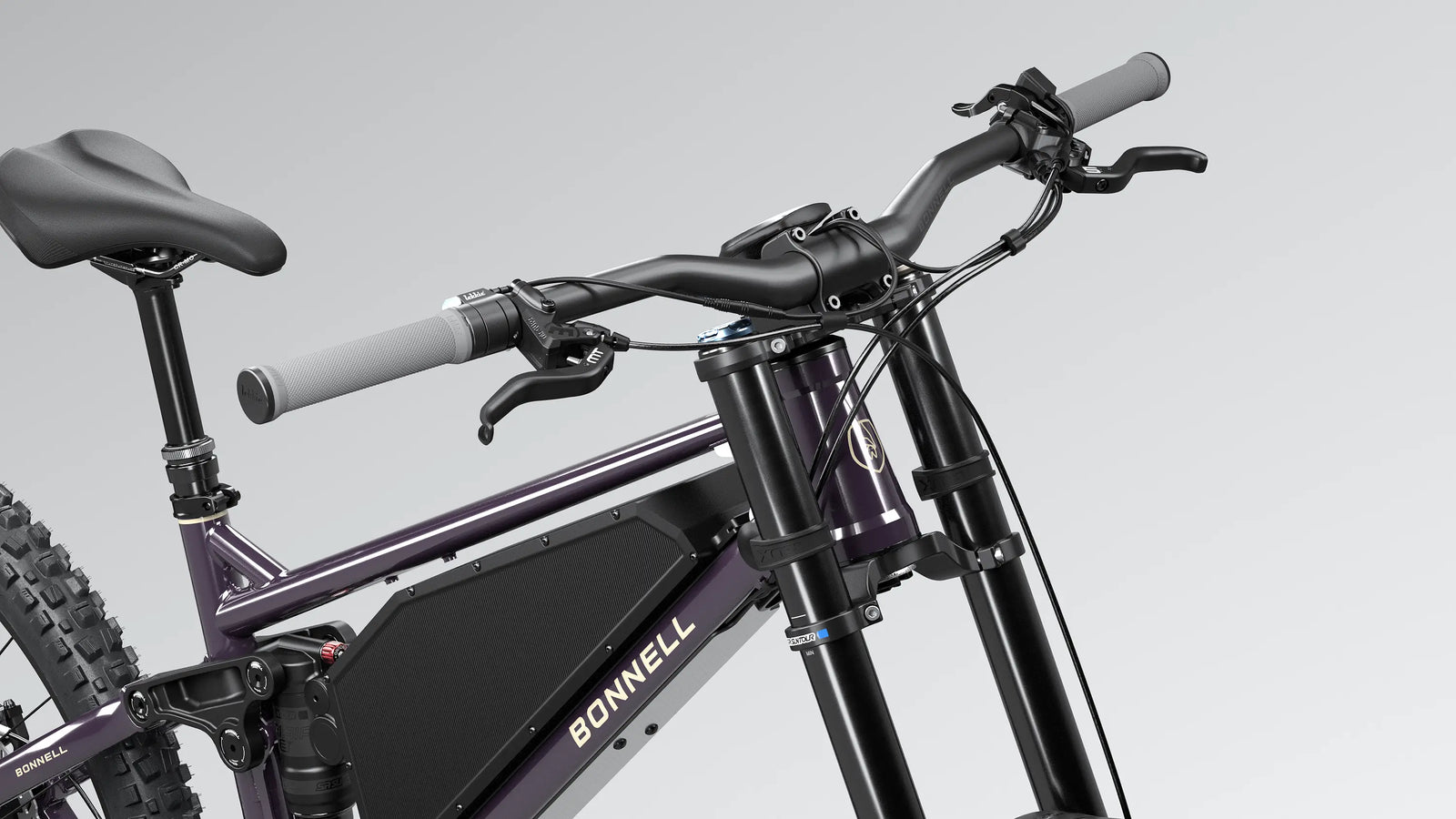

Fork

  • Suntour Rux 38 RC+, tapered 1"1/8-1.5", 29"
  • 200mm travel
  • 50 mm offset
  • Boost 20*110 mm thru axle
  • Short integrated fender included.

Brakes

  • Magura MT5, 4Pistons, MDR-P floating 220F/203R rotos.
  • Brakes are setup moto style
  • 2-finger, aluminum light weight lever blade, flip flop design allows for regular or moto setup

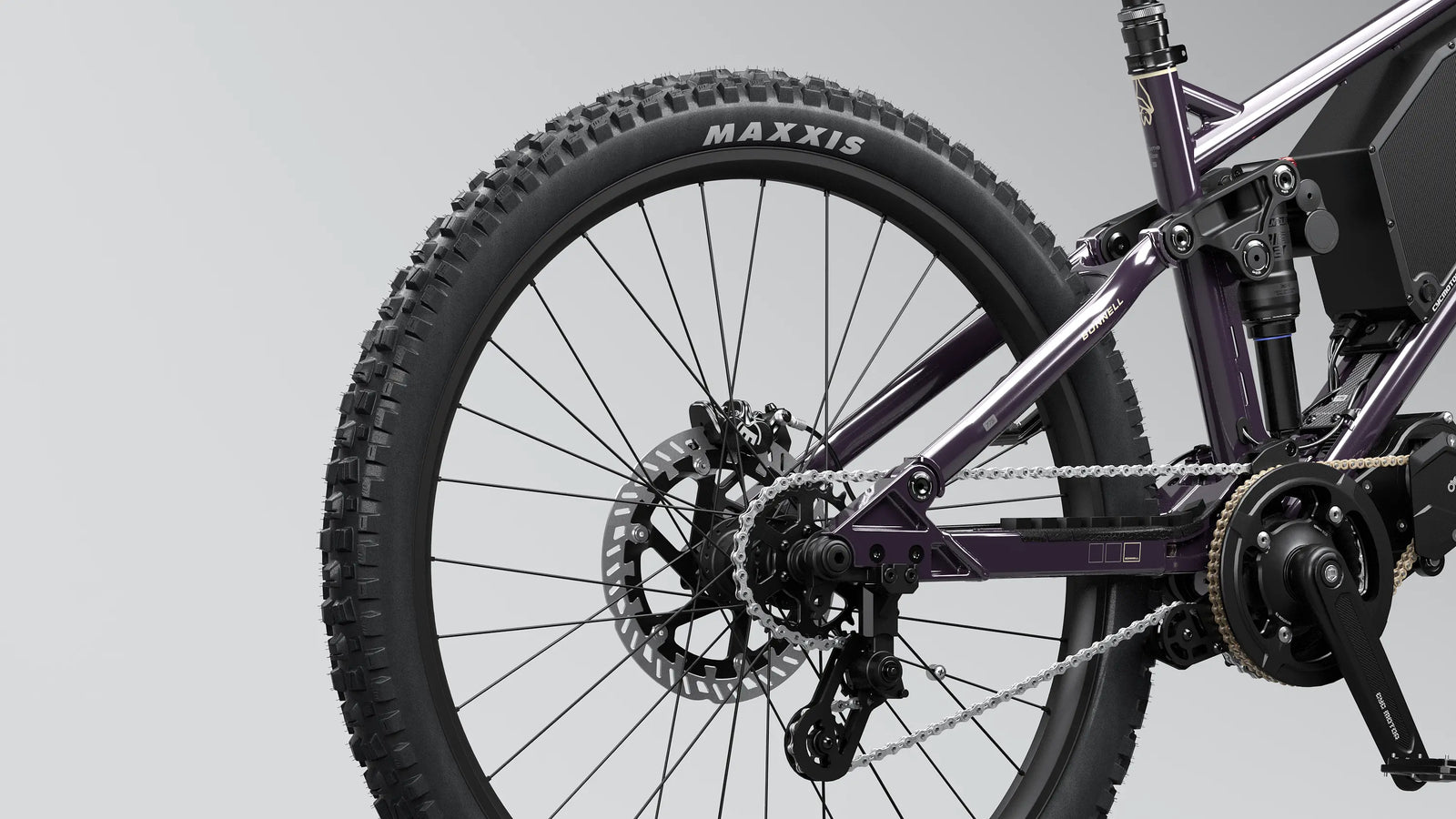

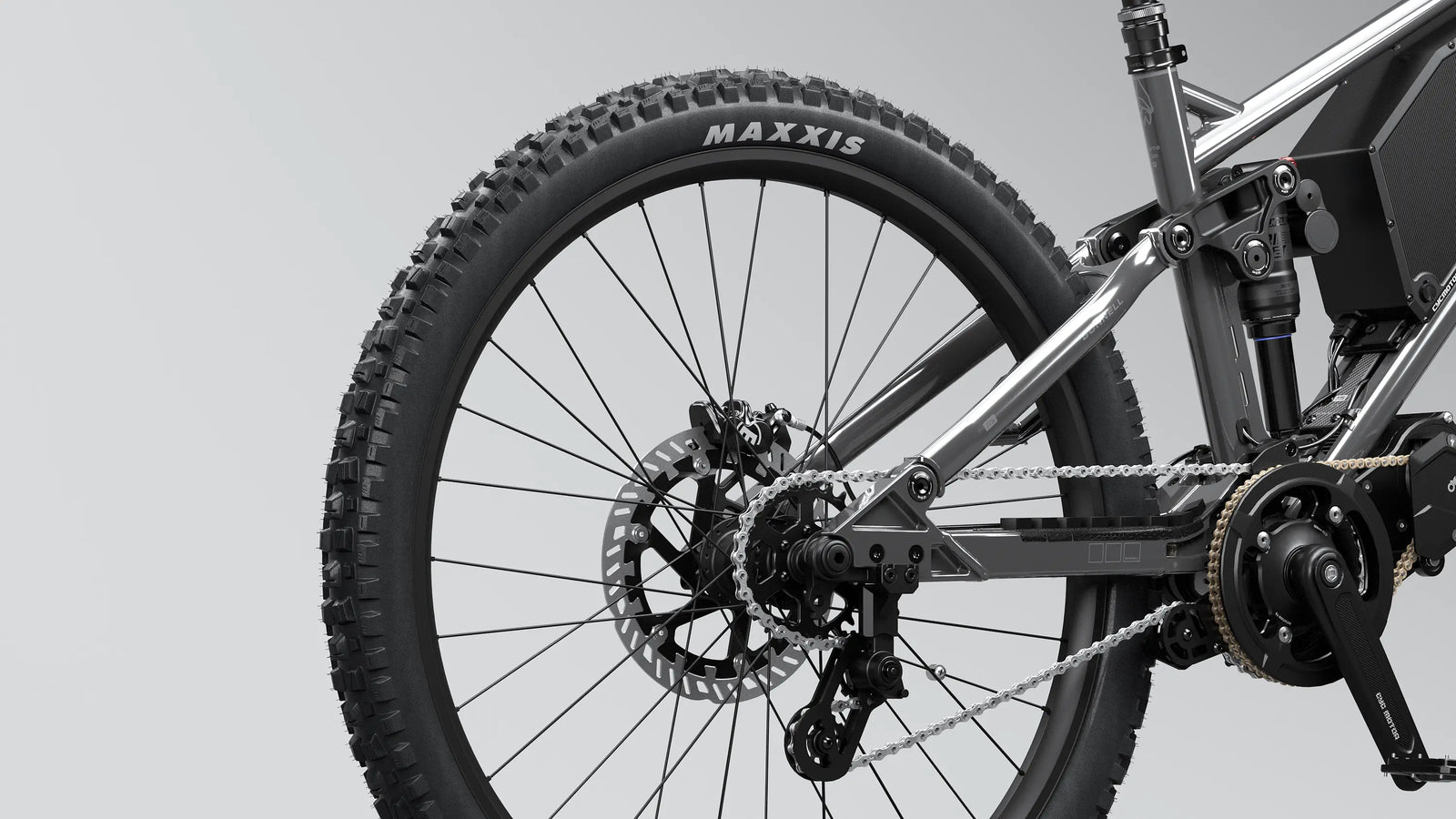

Wheel Size

  • 27.5" rear, 29" front

Tires

  • Rear: Maxxis Assegai DH casing Maxx grip tubeless ready 2.5"
  • Front : Maxxis Assegai DH casing Maxx grip tubeless ready 2.5"

Warranty

The full frame is covered by a two-year warranty for defects, commencing from date of delivery to the first owner.

The battery, motor controller, and motor are covered by a one-year warranty for defects, commencing from date of deliver to the first owner.

Parts from original component manufacturers, for example Suntour, are also covered for a minimum of one year unless stated otherwise.

Disclaimer

For off-road use only. Not street-legal in USA.
